Escalator Details

Description

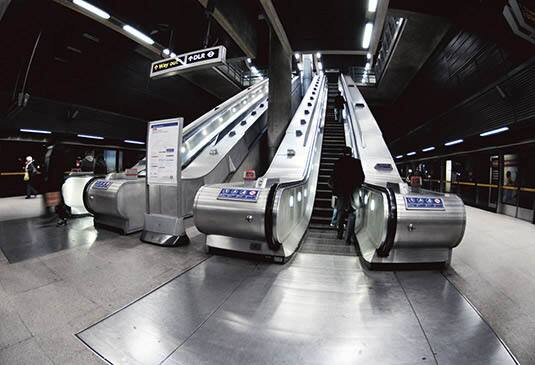

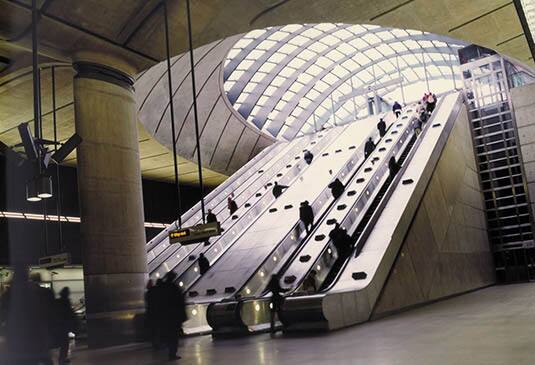

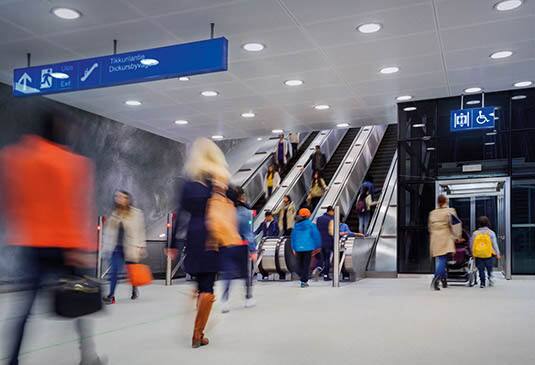

The KONE TransitMaster™ 140 building escalator is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.

Equipment Specifications

    • Operational environment: indoor, semi-outdoor, outdoor

    • Speed: 0.5, 0.65, 0.75 m/s

    • Inclination: 27.3–30º

    • Step width: 1000 mm

    • Vertical rise: up to 35 m

Escalator Safety

  • Safety is the starting point for every KONE building solution. The KONE TransitMaster™ 140 escalator conforms to all local and international safety codes.


  • We provide standard user safety features, including comb plate impact device switches and emergency stop buttons for passengers.

KONE Tools and Downloads

More Tools And Downloads

Escalator Options and Highlights

Travelmaster 140

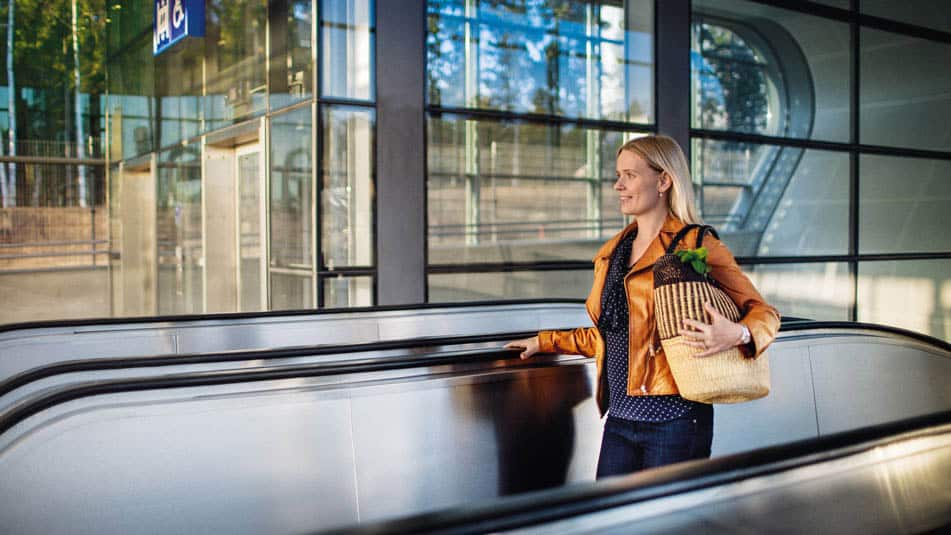

ESCALATOR ECO-EFFICIENCY

  • Smart operational modes and inverters optimize average energy consumption under different load conditions


  • Long-lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer


  • An energy-efficient inverter provides smooth motor speed regulation during standby operation and minimizes energy consumption at full speed


  • The optional regenerative technology cuts equipment power consumption by recycling energy and feeding it back into the system


  • The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk

Travelmaster 140

ESCALATOR USER SAFETY

In addition to the standard equipment safety features, we offer optional safety features, including:


  • Audible alarms and traffic signalization provide clear guidance on escalator travel direction


  • Alarm for travel direction if passengers enter an escalator in the wrong direction


  • New escalator traffic signalization and colored step demarcations to provide extra guidance


  • The four-step horizontal section at the top and bottom of the escalator makes the exit and escalator entry smooth and safe


  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your integrated building management systems

Travelmaster 120

ESCALATOR DESIGN

High-quality visual design for electric stairs offers the best possible passenger experience:


  • Innovative and attractive inclined autowalk commercial lighting solutions that also improve passenger guidance and escalator passenger safety


  • A wide range of escalator truss design options to create stunning visual effects and perfectly match your building’s architecture


  • High-quality equipment component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact Us for a Detailed Cost Estimate

Related topics

KONE Escalators and Autowalks


Product Name Type Segment Maximum Rise Speed Inclination KONE TransVario direct drive available 24/7 Connected Services available Energy- efficiency class
KONE Travel Master 110 Escalator Commercial, retail, hotel, office, multi-use, stadium, medical 13m 0.5 m/s 30°, 35°
Yes A+++
KONE Travel Master 115 Inclined autowalk Commercial, retail, hotel, office, multi-use, stadium, medical 7m 0.5 m/s 10°, 12°
Yes A+++
KONE Transit Master 120 Escalator Infrastructure 15m 0.5, 0.65, 0.75 m/s 27.3°, 30°, 35°
Yes A+++
KONE TransitMaster 140 Escalator Infrastructure 35m 0.5, 0.65, 0.75 m/s 27.3°, 30°
Yes A+++
KONE TransitMaster 165 Horizontal Autowalk Infrastructure 100m 0.5, 0.65, 0.75 m/s 0-6°
Yes A+++
